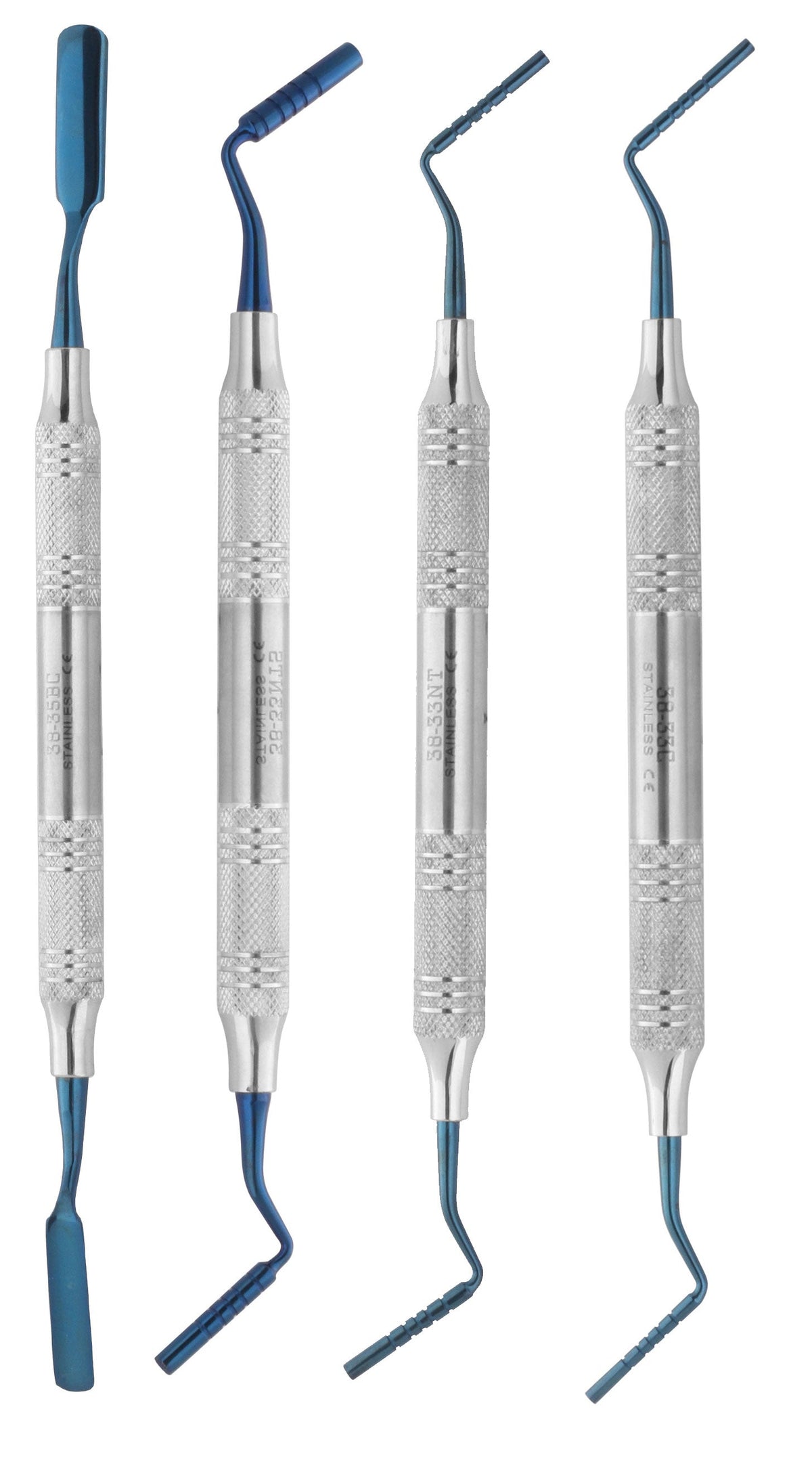

Bone Grafting Instruments: Types, Selection, and Clinical Use

Bone grafting instruments are the hand instruments used to expose the graft site, harvest bone if needed, transfer and condense graft material, and secure the membrane during regenerative dental procedures. They fall into five functional groups: access and flap reflection, harvesting, site preparation, graft handling and delivery, and containment  and the right tray depends on which procedure you perform: socket preservation, guided bone regeneration, sinus lift, or block grafting.

This guide maps every instrument to the stage it serves, the procedure it belongs in, and the graft material it is meant to handle, then gives a selection checklist you can run before you buy.

What Are Bone Grafting Instruments and Why Do They Matter?

Bone grafting replaces or augments bone that has been lost or is missing most often to prepare a site for a dental implant, preserve a ridge after extraction, or elevate the sinus floor. The graft material itself (autogenous, allograft, xenograft, or synthetic) does the biological work; the instruments do the mechanical work around it.

That mechanical work matters. If a graft is not stabilized, repair tissue rather than bone can fill the defect; if particulate is over-condensed, the interparticle space needed for vascular ingrowth is lost; if a membrane is pierced during handling, containment fails. Instrument choice is not a purchasing detail it is part of the procedure's stability and handling control.

The Grafting Workflow: 5 Stages and the Instruments Each One Needs

Every grafting procedure, regardless of indication, runs through the same sequence:

If a stage has no instrument designed for it, clinicians improvise and improvisation is where graft waste, tissue trauma, and time loss appear.

Types of Bone Grafting Instruments

Access and flap reflection: periosteal elevators

A periosteal elevator separates mucoperiosteum from bone to expose the defect. End design determines use:

• Spear-point end (e.g., Buser pattern): initiates the incision line and reflects the papilla.

• Paddle/wide end: continues reflection apically and can tuck membrane edges.

• Small/micro elevators: delicate sites and narrow access.

Blade edges should be smooth and rounded where they contact soft tissue; a sharp edge on the wrong end tears the flap you need for primary closure.

Site preparation: curettes, files, and rongeurs

• Bone curettes (Lucas 86/85, Molt patterns) remove granulation tissue and curette socket walls after extraction. Serrated versions grip tissue; smooth versions are gentler. Double-ended sizes let you switch without changing instrument.

• Bone files/rasps smooth sharp bony edges that would perforate a flap or membrane.

• Rongeurs (Friedman, Blumenthal patterns) contour bone and collect fragments useful both in preparation and in harvesting small autogenous chips.

Harvesting: scrapers, collectors, chisels

• Bone scrapers shave thin ribbons of cortical bone into a collection chamber, giving vital autogenous particles without a second donor site. Designs differ by blade angle and working-end shape: flat/straight for convex surfaces, curved for concave and posterior access, double-ended for irregular surfaces such as a torus. Choose a replaceable-blade model if you harvest often, and check that blades are actually available before buying.

• Bone collectors capture shavings produced during osteotomy drilling a low-effort complement to a scraper.

• Chisels with mallet are used for ridge expansion and splitting, in graduated widths rather than a single size.

Graft handling and delivery: carriers, packers, bowls

This is the group most specific to grafting:

• Graft bowl or well holds the material chairside. A coated or non-stick surface prevents particulate from adhering to plain stainless steel a small detail that saves measurable material per case.

• Bone carrier / syringe picks up particulate and delivers it into the defect, including narrow dehiscences and sinus windows where a spoon cannot reach. Carriers are sized by tip diameter, commonly from about 2.5 mm to 6 mm+.

• Bone packers and condensers have flat or serrated ends in graduated diameters and are used to adapt and lightly condense the graft. Depth markings on the tip let you control fill level in a deep socket.

• Scoop/spatula ends (often double-ended with a packer) transfer material and adapt the surface.

Containment: membrane handling and fixation

• Membrane forceps have broad, atraumatic tips. Standard tissue forceps with sharp teeth routinely puncture collagen membranes.

• Membrane scissors cut collagen or PTFE cleanly instead of crushing the edge.

• Fixation (tacks, screws, tenting screws) belongs to larger GBR and block cases; if your practice does these, confirm availability of the applicator, screws, and matching remover as a complete system rather than buying pieces separately.

Sinus lift instruments

Lateral or crestal sinus approaches add sinus curettes and membrane elevators in multiple angulations (anterior, posterior, left, right) for atraumatic elevation of the Schneiderian membrane, plus sinus retractors and graft carriers long enough to reach the window. These live in a dedicated category rather than in a general grafting tray.

Bone Grafting Instruments by Procedure

How to read this: a general practice doing extractions plus ridge preservation needs the first, second, fourth, sixth, seventh, eighth and last rows. Adding GBR brings the scraper/collector row. Adding sinus work justifies a dedicated sinus instrument set.

Matching Instruments to Graft Material

The form of the graft changes what you need more than the procedure does:

A common purchasing error is buying an elaborate packer set for a practice that works exclusively with putty, while lacking a single good curette the instrument every grafting procedure starts with.

How to Choose: 10 Selection Criteria?

1. Working-end diameter vs defect geometry. Narrow sockets want 2–3 mm tips; wide ridges and sinus windows want 5–8 mm. Measure the sites you actually treat, not the sites in the catalogue photo.

2. Double-ended vs single-ended. Double-ended instruments cut tray count and switching time; single-ended instruments give better access in restricted posterior zones.

3. Depth markings. On packers and carriers, markings let you control the fill level in a socket without guessing.

4. Coating placement. Titanium or non-stick coatings belong on the working end that touches graft material. Coating on the handle is cosmetic.

5. Serrated vs smooth tips. Serrated tips grip particulate and resist slipping; smooth tips adapt and polish the graft surface and are gentler on membranes.

6. Handle design. Hollow, knurled, large-diameter handles reduce fatigue and improve tactile feedback relevant when you are working by feel inside a sinus or a deep socket.

7. Material specification. Look for stated surgical-grade stainless steel and CE marking for the specific instrument, not a blanket "surgical stainless" claim across a catalogue.

8. Autoclave compatibility and IFU. Multi-part instruments (scrapers with cartridges, applicators) need disassembly and reprocessing instructions.

9. System compatibility. If you buy tacks, screws, or applicators, confirm they are a matched system, including the remover.

10. Warranty and parts availability. A warranty that covers breakage, bending, and rusting under normal use and blades/springs that can actually be replaced is worth more than a headline discount. Hunza Dental backs its surgical instruments with a 3-year warranty against breakage, bending, and rusting under proper, intended use.

Building a Bone Grafting Tray: Starter vs Comprehensive Setup

Starter tray sufficient for extraction-site grafting and small defects:

Comprehensive tray adds GBR, harvesting, and sinus work: bone scraper, bone collector, rongeur, bone file, chisel set + mallet, sinus curette/elevator set, additional carrier diameters, and a larger cassette.

Two practical notes: buy packers as a graduated set rather than individually (size gaps are where graft gets pushed into the wrong corner of a defect), and keep quantities of the consumables-of-the-tray curettes and elevators at two, since they are in hand at every stage.

Representative Hunza Dental options: Bone Grafting Set With Cassette for a matched packer set in a cassette; Bone Graft Carrier and Packer as a two-in-one workhorse; Bone Grafting Bowl for chairside holding; Signature Bone Surgery Set with Cassette when you want the wider surgical complement in one kit.

Clinical Use: Instruments Step by Step (Socket Preservation)

1. Extract atraumatically forceps and elevators, preserving the buccal plate.

2. Debride the socket Lucas or Molt curette removes granulation tissue and loose fragments; irrigate.

3. Smooth the crest bone file or rongeur if sharp edges would threaten closure.

4. Hold the graft chairside particulate into the graft bowl; hydrate per the material's instructions.

5. Deliver carrier or syringe places graft into the socket in increments.

6. Condense lightly packer perpendicular to the socket walls, gentle even pressure, slightly overfilling the crest. Over-packing is the classic error: it collapses the spaces bone needs to grow into.

7. Cover membrane forceps place a trimmed collagen membrane; membrane scissors trim to extend slightly beyond socket margins.

8. Suture needle holder and tissue forceps, without tension that would blanch the tissue.

9. Reprocess instruments into the cassette, cleaned and sterilized per the manufacturer's IFU.

Common Mistakes When Selecting and Using Graft Instruments

• Buying by catalogue, not by case mix. A tray configured for someone else's sinus practice sits half-empty in a general practice.

• Ignoring tip diameter range. One 4 mm packer does not fit a 2 mm interdental defect and a 12 mm wide ridge.

• Using a spoon instead of a carrier in deep or narrow sites graft ends up on the floor, not in the defect.

• Over-condensing. Compaction should adapt, not compress to solidity.

• Handling membranes with toothed forceps. Perforation is nearly guaranteed.

• Skipping the curette. Grafting over uncleaned granulation tissue undermines the whole procedure.

• Buying single pieces with no cassette or system match tray chaos, longer sterilization cycles, missing parts mid-case.

• Assuming any "stainless" is equal. Ask for the material specification and check corrosion performance claims and warranty terms.

• Neglecting edge maintenance. A dull curette or scraper requires more force, which is how slips happen.

Materials, Sterilization, and Warranty

Bone grafting instruments are reprocessed constantly, so material and construction decide lifespan:

• Surgical-grade stainless steel with stated certification (CE-marked) is the baseline; verify it per instrument group.

• Coatings are on working ends to reduce graft adhesion they do not replace cleaning.

• Cassettes protect tips during ultrasonic cleaning and autoclaving and keep sets matched between cases.

• Reprocessing must follow the manufacturer's instructions for disassembly, cleaning, and cycle parameters; multi-part instruments need explicit IFU.

• Warranty should be checked for what it covers (breakage, bending, rusting), for how long, and under what conditions. Hunza Dental provides a 3-year warranty on surgical instruments, with hand instruments at 12 months, against breakage, rust, or damage occurring during proper, intended use.

FAQ

What instruments are needed for bone grafting?

At minimum: a periosteal elevator for access, a surgical curette for debridement, a graft bowl, a carrier or syringe for delivery, graduated packers for condensation, membrane forceps and scissors, and a needle holder with sutures. GBR and sinus cases add scrapers/collectors and sinus instruments respectively.

What is the difference between a bone carrier and a bone packer?

A carrier transports graft material from the bowl to the defect. A packer condenses and adapts it inside the defect. They solve different problems, which is why most trays contain both.

Do you need a bone scraper for socket preservation?

Not usually. Socket preservation uses commercial particulate or putty; a scraper becomes relevant when you want autogenous chips to blend with a substitute, or for GBR and block cases.

How many packers should a tray contain?

Three working diameters (small, medium, large) cover most defects; buy them as a matched set so sizes are continuous rather than gapped.

Serrated or smooth packer tips?

Serrated tips grip and move particulate without slipping; smooth tips adapt the surface and are gentler near membranes. Most trays carry both.

How do you sterilize bone grafting instruments?

Ultrasonic cleaning followed by autoclaving, following each manufacturer's IFU; use a cassette to keep sharp and delicate tips separated and in set order.

Conclusion

Selecting bone grafting instruments is a procedure decision before it is a purchasing decision. Start from the cases you perform, map the five workflow stages to the instruments each one requires, match the instruments to the form of graft you use, and only then compare products' working-end diameters, coatings, markings, handle design, material spec, system compatibility, and warranty.

If you are building or upgrading a tray, browse the bone grafting instruments collection, or contact Hunza Dental and we will help you configure a set that matches your case mix  CE-certified surgical stainless steel, made in New Jersey, with a 3-year warranty and free US shipping on orders over $150.
