Bone Graft Carrier vs Packer vs Condenser: Differences, Tip Sizes, and When to Use Each

A bone graft carrier moves graft material from the bowl into the defect. A bone graft packer adapts and lightly condenses that material once it is in place. A bone condenser and scoop combines a small scoop for pickup with a condensing end, and is built for narrow sites where a separate carrier and packer would mean too many instrument changes.

All three belong to the graft handling and delivery stage of a grafting procedure. Most trays need at least two of them, and choosing the wrong one usually shows up as lost particulate, a socket filled unevenly, or graft pressed too hard against a membrane.

This guide explains how each instrument is built, which tip sizes fit which defects, and how to combine them by procedure and graft form. For the full grafting tray, from flap reflection to closure, see our hub guide to bone grafting instruments: types, selection, and clinical use.

What Is a Bone Graft Carrier?

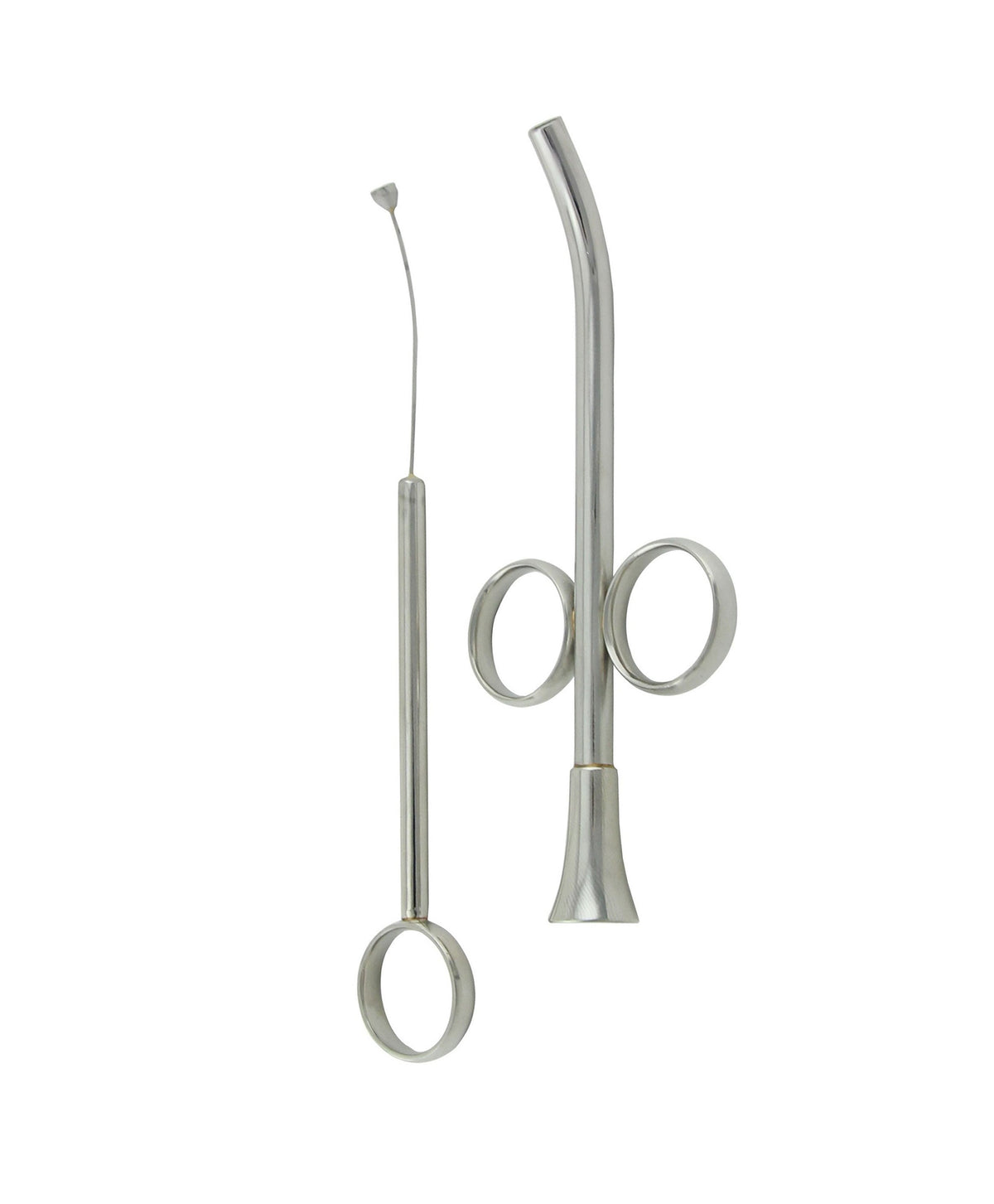

A bone graft carrier is a hollow-tipped transfer instrument that picks up a measured amount of particulate graft and releases it into the defect, usually by pushing a plunger or by tapping it out of a cupped tip. Its job ends when the graft leaves the tip; it is not designed to compress anything.

A carrier earns its place in three situations:

• Deep or narrow sites. A fresh molar socket, a crestal sinus osteotomy or a lateral window sits below the flap line, where a spatula loses particles on the way in.

• Loose particulate. Allograft, xenograft and synthetic granules scatter easily. A closed tip holds them until they reach the site.

• Incremental filling. Delivering in small loads lets you condense each layer before adding the next, which gives a more even fill than one large deposit.

Carrier tip sizes

Carriers are sized by the inside diameter of the tip. Smaller tips reach interdental and crestal sites; larger tips fill wide sockets and ridges in fewer passes. Hunza's range covers 3.5 mm to 6.0 mm:

If you do mostly single-rooted extraction sites, a smaller tip will do more of the work. Multi-rooted molar sockets and sinus windows justify the 6.0 mm tip, because filling them through a 3.5 mm tip means many more trips from the bone grafting bowl.

When a carrier is the wrong tool

Putty and gel grafts hold their shape and tend to stick inside a hollow tip. For those, a scoop or spatula end is quicker and wastes less material. A carrier also adds nothing to a collagen plug placed as a single piece.

What Is a Bone Graft Packer?

A bone graft packer is a solid-ended instrument used to push graft against the defect walls, close voids and level the surface once the material is in the site. It works by light, even pressure, never by force.

That distinction matters clinically. Particulate graft needs space between particles for blood and new vessels to move in. Pack it until it feels solid and you close those spaces. The goal is adaptation: every wall contacted, no air pockets, a slight overfill at the crest.

Packer tip forms

• Flat, smooth face. Adapts and smooths the surface. Gentler near a membrane or thin buccal plate.

• Serrated face. Grips particulate so it moves with the instrument rather than squeezing out to the side. Useful for the first layers in a deep socket.

• Long or curved shank. Reaches distal molar sockets and the floor of a sinus window. Hunza's Bone Graft Packer uses a long, curved tip for this.

• Double-ended, graduated. Two diameters on one handle, so you can step down as the defect narrows toward the crest.

Packer diameters

Packer diameter should match the defect, not the catalogue photo. A tip that is too small leaves ridges of loose graft between strokes; a tip too large cannot reach the apical part of the socket.

Buy packers as a graduated set if you can. A gap between sizes is where graft gets pushed into the wrong corner of a defect.

Coating on the working end reduces how much graft clings to the tip. If you are weighing coated against plain steel, our comparison of stainless steel vs titanium dental instruments covers the trade-offs.

What Is a Bone Condenser and Scoop?

A bone condenser and scoop is a double-ended hand instrument with a small spoon on one end for picking up graft and a condensing end on the other for adapting it. It does the work of a carrier and a packer in one instrument, at a smaller scale.

It is most useful where the site is small and switching instruments costs time: interdental defects, a single-rooted socket, dehiscence around an implant thread, or topping up a fill near the crest. The scoop carries less than a carrier, so it is slower for large volumes.

Hunza makes the condenser and scoop in three working diameters, plus a set:

• Bone Condenser & Scoop 2.0 mm for interdental and peri-implant defects

• Bone Condenser & Scoop 2.7 mm for incisor and premolar sockets

• Bone Condenser & Scoop 3.3mm for larger single-rooted sockets

• Bone Condenser & Scoop Set for all three sizes together

For putty grafts, a dedicated narrow double-ended bone graft scoop is often the faster pickup tool.

"Condenser" means different things

The word covers three unrelated instruments, which causes ordering mistakes:

1. Bone graft condenser (this article): a hand instrument for adapting particulate graft.

2. Osteotome: a tapered instrument tapped with a surgical mallet to compress soft bone or raise the sinus floor through a crestal approach. These sit with sinus lift instruments, not graft handling.

3. Amalgam condenser: a restorative instrument for packing amalgam into a cavity. Hunza lists these under pluggers and condensers in the restorative range. They are not meant for surgical grafting.

If a supplier listing says only "condenser," check the working end and the category before you order.

Carrier vs Packer vs Condenser: Side-by-Side

The carrier transports, the packer adapts, and the condenser-scoop does a small amount of both.

Which ones you need, by procedure

Which ones you need, by graft form

Loose particulate wants all three. Autogenous chips from a bone scraper are sticky and scarce, so a scoop and a packer usually beat a carrier. Putty needs a scoop or spatula and only a light packer. Block grafts skip these instruments almost entirely and move to fixation.

How to Use Them Together in a Socket Graft

Carrier and packer work in alternation, one thin layer at a time. The sequence below assumes particulate graft in an extraction socket that has already been debrided with a bone curette.

1. Hydrate the graft in the bowl following the material's instructions, so particles clump slightly and travel as one load.

2. Load the carrier without pressing the material into the tip. Over-filling the tip compacts the graft before it reaches the site.

3. Deliver to the apical third first. Release the load at the base of the socket rather than at the crest.

4. Adapt with a packer that fits the socket width there. Use light, even strokes toward the walls. Stop when the layer is in contact, not when it feels hard.

5. Repeat in layers, stepping down to a smaller packer or a condenser-scoop as the socket narrows.

6. Finish slightly above the crest with a smooth-faced packer, then place the membrane with a membrane positioner or atraumatic forceps.

The same rhythm applies to a lateral sinus window, with a longer carrier and a curved packer. Elevating the sinus membrane itself is a separate step covered by the sinus lift instrument range.

Common Mistakes With Graft Delivery Instruments

• Using a packer as a carrier. Dragging particulate on a solid tip loses most of it on the way to the site.

• One packer for every defect. A single 4 mm tip cannot adapt graft in a 2 mm interdental gap or a 7 mm molar socket.

• Packing to solidity. Over-condensed particulate leaves little room for new vessels to grow in.

• Serrated tips against a membrane. Use a smooth face once the membrane is in place.

• Ordering "condensers" from the wrong category. Amalgam condensers and osteotomes are not graft handling instruments.

• Loose instruments with no cassette. Small tips get bent or lost in reprocessing. A cassette keeps the set together and protects the working ends.

Cleaning and Sterilizing Carriers and Packers

Carriers need the most attention, because graft and blood can dry inside the hollow tip and plunger channel. Rinse them before the graft sets, push the plunger through several times under water, then clean ultrasonically and autoclave per the manufacturer's instructions. Packers and condenser-scoops are solid and simpler to reprocess. For a full protocol, see our guide to the care and sterilization of dental instruments in US clinics.

Handle diameter matters too: you work these instruments by feel. A wider, knurled handle gives better control during light condensing, as explained in our piece on ergonomic dental instrument handle design.

FAQ

Is a bone graft carrier the same as a bone graft syringe?

They do the same job. "Syringe" usually describes a carrier with a barrel and plunger; "carrier" also covers cupped tips without a plunger.

Can I use a bone graft packer instead of a carrier?

Only for very small volumes. A packer has no way to hold loose particulate, so most of the graft falls off before it reaches a deep site.

What size bone graft packer do I need?

Match the tip to the narrowest part of the defect you treat most. Around 2.7 to 3.5 mm suits incisor and premolar sockets; 5.6 to 7.5 mm suits molar sockets and sinus windows.

Is a bone condenser the same as an osteotome?

No. A bone graft condenser adapts graft material by hand. An osteotome is tapped with a mallet to compress bone or lift the sinus floor.

Do I need a condenser and scoop if I already have carriers and packers?

Not always. It saves time in small sites, such as interdental and peri-implant defects, where switching between two instruments slows you down.

Should I buy a set or single instruments?

A set gives continuous sizes and usually costs less per instrument. Buy singles only to fill a specific gap in an existing tray.

Build Your Graft Delivery Set

Start from the defects you treat most, then pick one carrier size, a graduated packer set and, if you do many small sites, a condenser-scoop set. The Bone Grafting Set With Cassette is a ready-made starting point. Browse the full bone grafting instruments collection, or read our complete guide to dental implant surgery instruments if you are planning the implant stage too.

Need help matching sizes to your case mix? Contact Hunza Dental and we will help you configure a set.
